Hebel

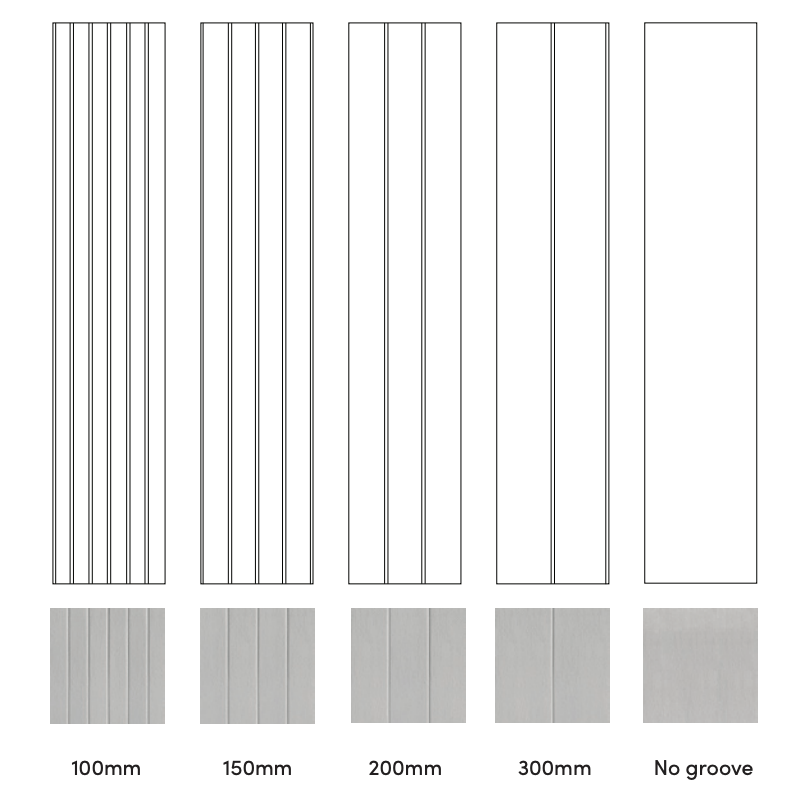

Hebel’s PowerPattern Track collection provides a contemporary option for facades with routed vertical lines into the face of the panel that are ready to install. The “V” groove lines are available in 100mm, 150mm, 200mm or 300mm intervals and as a plain panel with no grooves (bevelled long edges).
| Accoustic | Rw + Ctr 45 to 48 based on a 210mm wall system thickness |
|---|---|

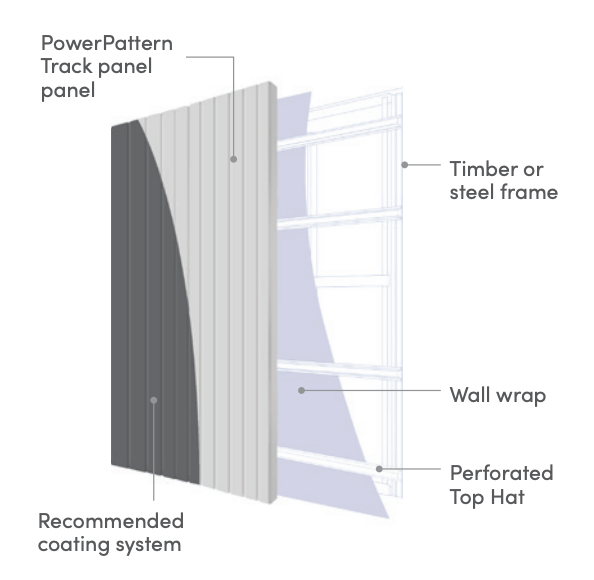

| Thermal | R2.06 to R3.22. Common Wall Thickness: 199mm, based on 90mm stud + 10mm plasterboard + 24mm top hat + 75mm PowerPattern. With variations in stud thickness and top hats, wall widths can vary between 179mm to 210mm. |
| Fire | All Hebel AAC products are suitable for use where non-combustible building materials are required in accordance with Clause C1.9 and Part 3.7.1 of the Building Code of Australia. Hebel products are suitable for use in bushfire and flamezone construction |
| Coating System | Panels should be coated with a suitable and compatible acrylic coating system |
