A castellation profile is reminiscent of the top of a castle wall having a series of rectangular alternating parapets and indentations. Castellation has once again become a popular architectural trend in both commercial projects and stylish contemporary residential designs.

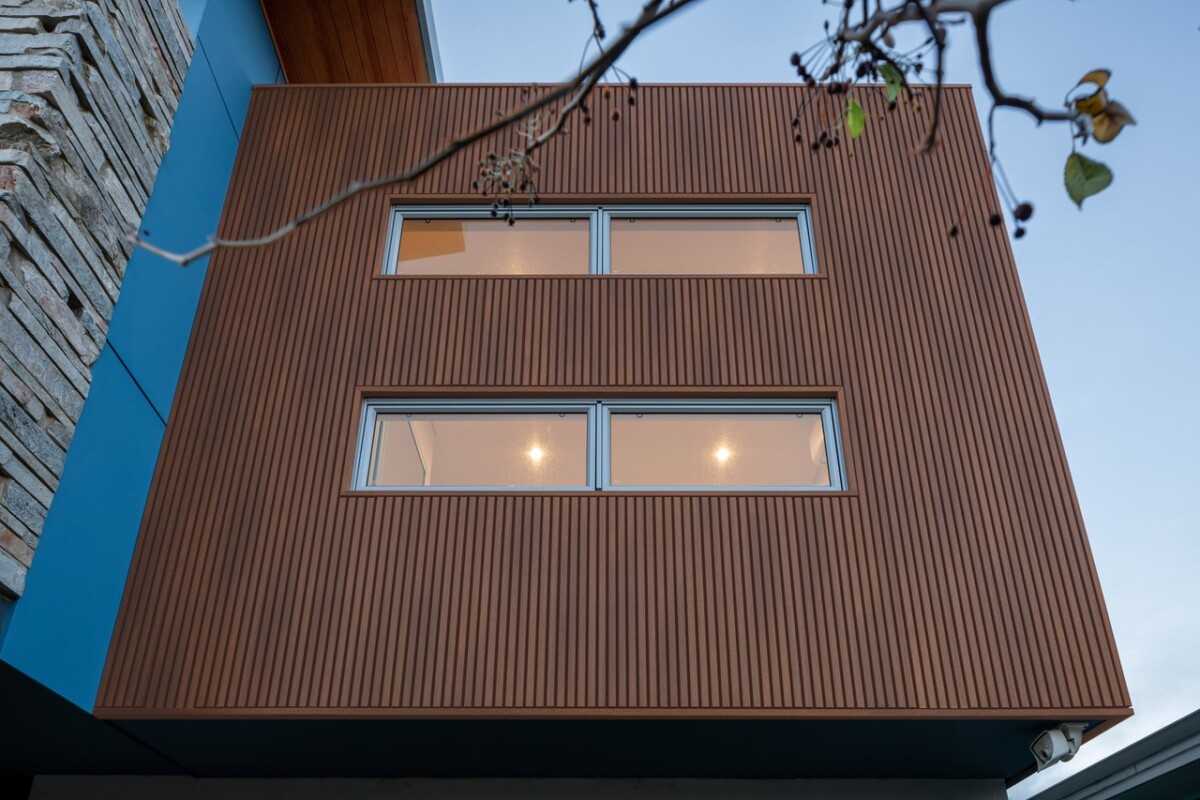

On a facade it achieves the look of parallel castellated timber battens with a narrow shadowline, or rebate, between each one.
NewTechWood’s Castellation 5-rib cladding panel, available in modern colours, provides a multidimensional, visually appealing addition to any building project.
When fastening NewTechWood’s products all screws that are face fastened should always be driven in at a 90 degree angle to the cladding surface. Top screwing should never be done to the products. An extra joist should be added if a 90 degree angle cannot be driven into the board. All fasteners should be on their own independent joists, when two board ends meet each other there must be a sister batten. The end of each board must sit on its own batten.
Use white chalk, straight boards, or string lines as templates for straight lines. Never use coloured chalk. Coloured chalk will permanently stain NewTechWood’s products and are highly not recommended.
| Size | 196 x 25 x 5400mm |
|---|
